Electrical Frequency in the Western Australian Wholesale Electricity Market

What It Is, How It Is Disturbed, and How It Is Restored

Introduction

Every power system has a single number that reveals, in real time, whether the grid is in balance: its frequency. In Western Australia’s Wholesale Electricity Market (WEM) — the market that coordinates electricity generation and consumption across the South West Interconnected System (SWIS) — that target is 50 Hertz (Hz). When frequency holds at 50 Hz, supply and demand are matched. When it deviates, the grid is signalling that something has gone wrong and that intervention is required.

This article explains what electrical frequency is, the physics that govern it, the circumstances in which it is disturbed, and the layered framework the WEM uses to restore it — including the Frequency Co-optimised Essential System Services (FCESS) that underpin the market’s real-time response from 1 October 2023 onwards.

Defining Electrical Frequency

Frequency is the rate at which alternating current (AC) completes a full electrical cycle, measured in Hertz (i.e. the number of complete cycles per second). In the SWIS — as in most grids that operate on the 50 Hz standard — this means the current reverses direction 50 times every second.

Frequency is a direct physical consequence of how synchronous generators work. Inside every such generator, a spinning rotor — a magnetised shaft — rotates inside a fixed stator, inducing an alternating voltage. The relationship between rotor speed, generator design, and the resulting electrical frequency is given by:

f = (N × P) / 120

Formula Variables

• f — Electrical frequency in Hertz (Hz)

• N — Rotational speed in revolutions per minute (RPM)

• P — Number of magnetic poles (always an even number)

Why the Constant is 120

The constant 120 combines two unit conversions:

1. Seconds to minutes (60): Rotational speed (N) is measured in RPM, but frequency is measured in Hz (cycles per second). Dividing by 60 converts RPM to revolutions per second.

2. Poles to pole pairs (2): It takes two magnetic poles — one North and one South — to create one full electrical cycle. The number of cycles per revolution is therefore P divided by 2.

Combining these steps: f = (N / 60) × (P / 2) = (N × P) / 120, where 60 × 2 = 120.

Practical Implications for the SWIS

The formula has direct engineering consequences. To produce 50 Hz:

• A 2-pole generator must spin at 3,000 RPM.

• A 4-pole generator needs only to spin at 1,500 RPM.

All synchronous generators connected to the SWIS are electromagnetically locked together. They must all rotate at the speed that corresponds to 50 Hz. When generation and load are in balance, every machine holds that speed. When they are not, the speed — and with it the frequency — begins to shift. This is why frequency is such a direct and sensitive real-time indicator of grid health.

How Frequency Disturbances Occur

A frequency disturbance is any event that creates a sudden imbalance between total electricity generation and total electricity consumption on the SWIS. Two types of disturbance are possible.

Frequency Drops Below 50 Hz

This occurs when demand exceeds supply. Common causes on the SWIS include:

• A large generating unit tripping — that is, stopping suddenly and unexpectedly.

• A sharp, unanticipated surge in consumer demand that outpaces available generation.

With less power fed into the grid than is drawn from it, generators slow under the extra load, and frequency falls below 50 Hz.

Frequency Rises Above 50 Hz

This occurs when supply exceeds demand. Common causes include:

• A large industrial load — such as a major mine or processing facility — is disconnecting abruptly.

• A significant transmission line failure traps excess generation in part of the network.

With more power being produced than consumed, generators accelerate, and frequency rises above 50 Hz.

Analogy: The Tandem Bicycle

Sometimes an analogy is helpful in developing an intuitive understanding of an important concept. To understand frequency disturbances, think of two people riding a tandem bicycle.

If the front rider stops pedalling (lost generation), the bike slows down — frequency drops.

If the rear rider jumps off (lost load), the bike suddenly speeds up — frequency rises.

In both cases, the remaining riders must respond immediately to restore the original speed and frequency.

How Frequency is Rectified in the WEM

The WEM manages frequency through a tiered response framework. Each tier responds progressively — from automatic physical responses measured in milliseconds through to deliberate operator actions measured in minutes. Since the commencement of the new WEM on 1 October 2023, the market-based elements of this framework are delivered through Frequency Co-optimised Essential System Services (FCESS), a suite of five regulated services procured by the Australian Energy Market Operator (AEMO) through the Security-Constrained Economic Dispatch (SCED) market.¹

Tier 1 — Inertia: Immediate Physical Response

The first line of defence requires no electronic signal or human action. Large synchronous generators — thermal plant, gas turbines, and hydro units — store significant kinetic energy in their spinning rotors. When a disturbance occurs, this stored energy is automatically released or absorbed, physically resisting the change in speed. This inertial response buys the system several seconds before frequency deviates to dangerous levels.

In the WEM, inertia is formalised as the RoCoF Control Service — one of the five FCESS. This service is measured in MW-seconds and is provided by the physical inertia of rotating generators. It limits the rate of change of frequency (RoCoF) to a defined maximum immediately after a disturbance, giving other response tiers time to activate. Accredited providers of the RoCoF Control Service must have high-resolution time-synchronised data recorders installed at or near their connection point to monitor service delivery.

As the SWIS transitions toward a higher share of inverter-based renewable generation — solar and wind — which contributes little or no physical inertia, maintaining adequate RoCoF Control Service is one of the defining challenges of the energy transition.

Tier 2 — Primary Frequency Control: Fast Automated Response

Within seconds of a disturbance, automated governor systems on conventional generators detect the frequency deviation and adjust their output accordingly. If frequency falls, governors ramp generation up; if frequency rises, they ramp it down. Battery Energy Storage Systems (BESS) — increasingly present on the SWIS, including facilities in the Collie corridor — are particularly effective at this tier because they can inject or absorb power almost instantaneously.

In the WEM, this tier is delivered through the Contingency Reserve Raise and Contingency Reserve Lower services. These services maintain response capability in reserve so that accredited facilities can rapidly adjust injection or withdrawal after a Contingency Event—for example, to avoid Under-Frequency Load Shedding (UFLS) following a single Credible Contingency Event. The Contingency Reserve market operates across three timeframes:

• Fast Contingency Reserve — response within 6 seconds.

• Slow Contingency Reserve — response within 60 seconds.

• Delayed Contingency Reserve — response within 5 minutes.

Tier 3 — Secondary Control: Deliberate Frequency Restoration

Primary control arrests the frequency deviation and stabilises it, but does not necessarily return the frequency to precisely 50 Hz. That task falls to secondary control, delivered in the WEM through the Regulation Raise and Regulation Lower services.

Regulation is measured in MW and involves frequent adjustments to a facility’s injection or withdrawal of electrical power in accordance with AEMO’s centralised Automatic Generation Control (AGC) scheme. Regulation Raise raises the SWIS frequency; Regulation Lower lowers it. Regulation service providers must be capable of operating under AGC and must meet the Performance Requirements specified in the FCESS Accreditation WEM Procedure, as well as the SCADA and communication requirements in the Communications and Control Systems WEM Procedure.

Regulation precisely restores the frequency to 50 Hz and resets the primary reserves, ensuring they are available for the next event.

Tier 4 — Emergency Measures: Last Resort

If the preceding tiers fail to contain a severe disturbance, the SWIS has a final safeguard: Under-Frequency Load Shedding (UFLS). If frequency drops below pre-defined emergency thresholds, the system automatically disconnects discrete blocks of customers from the grid. This is a controlled, localised blackout, designed to prevent total, uncontrolled collapse of the network.

UFLS is a last resort. Its purpose is to protect the integrity of the entire grid, not to manage routine frequency deviations.

Summary of the Five FCESS Services

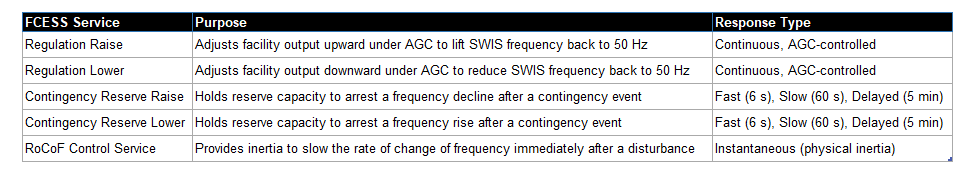

The table below summarises the five FCESS operated by AEMO in the WEM, as documented primarily in the Summary of Frequency Co-optimised Essential System Services (AEMO, 2023), supplemented by several other sources.

Market Procurement

FCESS is procured through the SCED Market via a co-optimised mechanism. Accredited facilities submit offers for energy and FCESS simultaneously, and the dispatch algorithm clears them together to minimise total system cost while meeting security constraints. Market participants whose facilities meet the relevant Performance Requirements may apply to AEMO for FCESS accreditation.

If insufficient FCESS is projected to be available in the Real-Time Market, AEMO can trigger longer-term procurement through the Supplementary Essential System Service Mechanism (SESSM). The Economic Regulation Authority (ERA) may also trigger the SESSM where FCESS market outcomes are inconsistent with competitive provision. The ERA reviews the FCESS Offer Price Ceilings — the highest price at which these services can be offered — at least once every three years.

Conclusion

Electrical frequency is the continuous, real-time signal that reveals whether the SWIS is in balance. Grounded in the physics of rotating generators — where frequency is a direct function of rotor speed and pole count — the 50 Hz target of the WEM is maintained through a layered system of physical inertia, fast automated controls, deliberate operator dispatch via AGC, and emergency load shedding.

Since 1 October 2023, the market-based elements of this framework have been consolidated under the FCESS structure: five services — Regulation Raise, Regulation Lower, Contingency Reserve Raise, Contingency Reserve Lower, and the RoCoF Control Service — co-optimised and procured through the SCED Market. As the WEM integrates more renewable generation and BESS capacity, maintaining adequate provision of all five services — particularly the RoCoF Control Service — becomes one of the defining engineering and market design challenges of the energy transition on the SWIS.

See also

Here’s the YouTube video companion to this article.

Sources

‘Summary of Frequency Co-Optimised Essential System Services’. Australian Energy Market Operator. Accessed 26 April 2026. https://www.aemo.com.au/energy-systems/electricity/wholesale-electricity-market-wem/system-operations/essential-system-services/summary-of-frequency-co-optimised-essential-system-services.

‘Call for Expressions of Interest for Essential System Services – August 2025’. Australian Energy Market Operator, August 2025. https://www.aemo.com.au/-/media/files/stakeholder_consultation/tenders/2025/call-for-eoi-for-essential-system-services/fcess-description-and-data-august-2025.pdf?rev=b457df8bd3e34bd5b4dcac9814b678ee&sc_lang=en.

Denholm, Paul, Trieu Mai, Richard Kenyon, Benjamin Kroposki, and Mark O’Malley. Inertia and the Power Grid: A Guide Without the Spin. NREL/TP-6A20-73856, 1659820, MainId:6231. 2020. https://doi.org/10.2172/1659820.

EnerCloud. ‘Comparison of the WEM and the NEM’. EnerCloud, 31 July 2022. https://enercloud.io/comparison-of-the-wem-and-the-nem/.

ERA (2023). Frequency Co-optimised Essential System Services Offer Price Ceiling: Final Determination. September 2023.

LIYU Power. ‘How Is The Frequency of A Generator Increased​’. 16 December 2025. https://www.liyupower.com/How-Is-The-Frequency-of-A-Generator-Increased-id49401375.html.

Undrill, J. ‘Notes on Frequency Control for the Australian Energy Market Operator’. 2019. https://www.aemc.gov.au/sites/default/files/2019-08/International%20Expert%20Advice%20-%20Notes%20on%20frequency%20control.pdf.

1. Also known as the Balancing Market or the Real Time Market.
